ABOUT THIS DOOR CLOSER

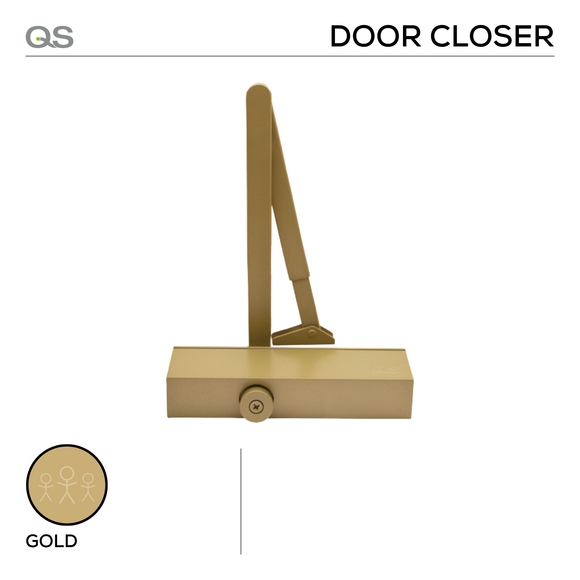

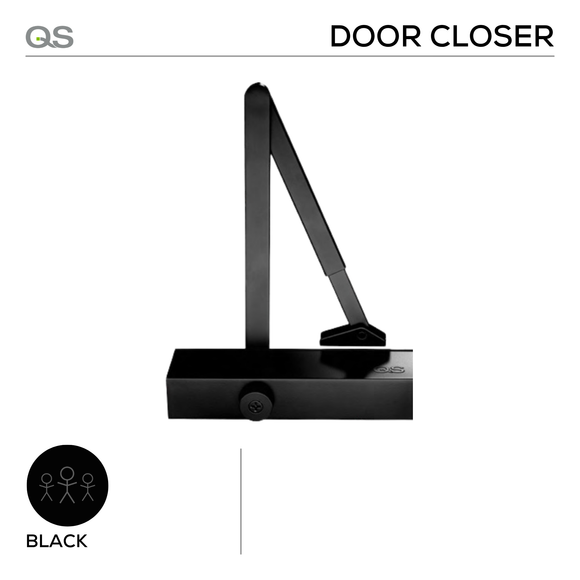

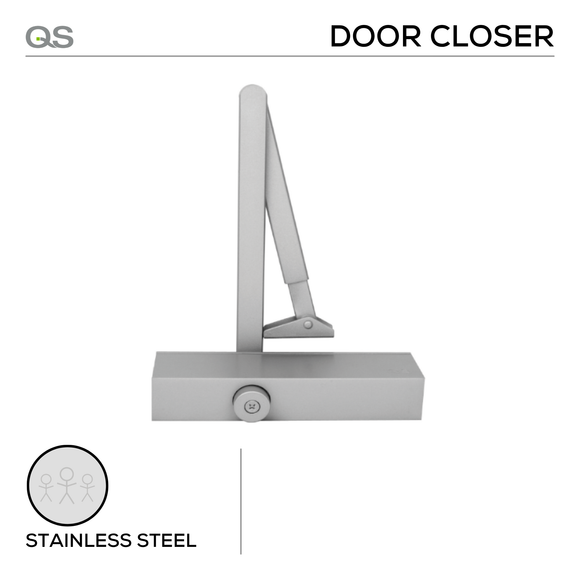

The QS700 Door Closer – Non Hold Open (NHO) is a hydraulic surface mounted door closer designed to close doors smoothly and automatically after opening.
Door closers improve safety, security and energy efficiency by ensuring doors return to the closed position.
The QS700 is suitable for residential, office and light commercial doors where reliable door closing is required.
KEY FEATURES
Brand: QS Doorware
Model: QS700
Function: Non Hold Open (NHO)
Door Closer Type: Surface Mounted Door Closer
Mechanism: Rack & Pinion
EN Rating: EN2–4 Adjustable
Maximum Door Width: 1100mm
Maximum Door Weight: 80kg
Arm Type: Standard Arm
Finish: Silver
Fire Rated: Yes
HOLD OPEN OR NON HOLD OPEN
This product is the Non Hold Open (NHO) version.
Hold Open (HO)
Allows the door to remain open when pushed fully open.
This is useful in offices or areas where doors need to remain open temporarily.
Non Hold Open (NHO)
The door always closes automatically and cannot remain open.
This option is typically required for fire doors and security doors.
SUITABLE FOR
• Residential doors
• Office entrances
• Light commercial buildings
Door Materials
• Timber doors
• Aluminium doors
• Steel doors
HOW TO CHOOSE THE CORRECT DOOR CLOSER
Door closers are selected according to door width and weight.
Typical guideline:
EN2–3 → light internal doors
EN3–4 → standard office doors
EN5+ → heavy commercial doors
The QS700 adjustable EN rating (EN2–4) makes it suitable for standard residential and office doors.
INSTALLATION INFORMATION
Surface door closers can usually be installed in three ways:
• Door leaf installation
• Frame (transom) installation
• Parallel arm installation
The correct installation depends on the door configuration.
WHAT'S INCLUDED
• Door closer body
• Arm assembly
• Fixing screws
• Installation instructions
DOOR CLOSER QUICK SELECTION GUIDE
Door closers are selected according to door width and door weight.
| Door Width | Typical Door Weight | Recommended Door Closer |
|---|---|---|
| Up to 850mm | Up to 60kg | QS680 |
| Up to 950mm | Up to 80kg | QS690V |
| Up to 1100mm | Up to 100kg | QS750 |
| Up to 1100mm | Medium traffic commercial doors | QS760ET |
| Up to 1100mm | Heavy duty commercial doors | QS880 / QS895 |
| Concealed installation | Architectural doors | QS970 |
NEED HELP CHOOSING A DOOR CLOSER?
Not sure which door closer you need?
Send us your door width, door weight, or a photo of the door, and we will recommend the correct model.
If you are unsure which door closer is suitable for your door, please contact The Stickman Store and we will gladly assist.
