ABOUT THIS DOOR CLOSER

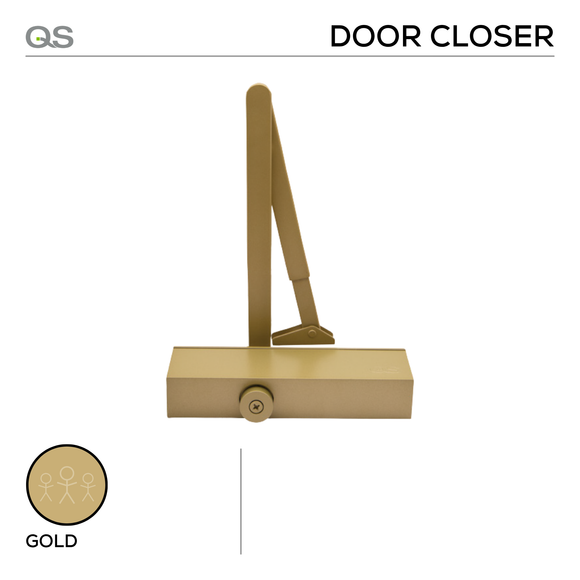

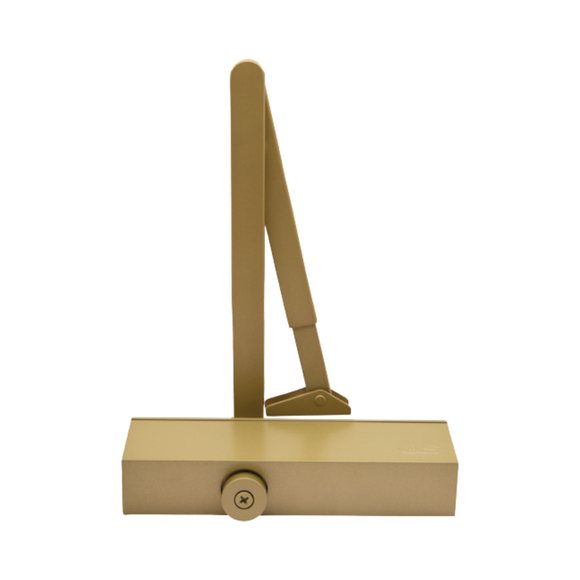

The QS750 Door Closer – Non Hold Open (NHO) is a hydraulic surface mounted door closer designed to close doors smoothly and automatically after opening.
Door closers improve safety, security and energy efficiency by ensuring doors return to the closed position.
The QS750 is designed for medium to heavy doors and is commonly used in offices, apartment buildings and commercial entrances.
KEY FEATURES
Brand: QS Doorware
Model: QS750
Function: Non Hold Open (NHO)
Door Closer Type: Surface Mounted Door Closer
Mechanism: Rack & Pinion
EN Rating: EN2–5 Adjustable
Maximum Door Width: 1100mm
Maximum Door Weight: 100kg
Arm Type: Designer Arm
Finish: Gold
Fire Rated: Yes
HOLD OPEN OR NON HOLD OPEN
This product is the Non Hold Open (NHO) version.
Non Hold Open (NHO)
The door always closes automatically after opening and cannot remain open.
This option is typically required for fire doors and security doors.
Hold Open (HO)
Allows the door to remain open when pushed fully open.
This version is available separately.
SUITABLE FOR
• Residential doors
• Office entrances
• Commercial buildings
• Apartment buildings
Door Materials
• Timber doors
• Aluminium doors
• Steel doors
HOW TO CHOOSE THE CORRECT DOOR CLOSER
Door closers are selected according to door size and weight.
Typical guideline:
EN2–3 → light internal doors
EN3–4 → standard office doors
EN5+ → heavy commercial doors
The QS750 adjustable EN rating makes it suitable for a wide range of door sizes.
INSTALLATION INFORMATION
Surface door closers can usually be installed in three ways:
• Door leaf installation
• Frame (transom) installation
• Parallel arm installation
The correct installation depends on the door configuration.
WHAT'S INCLUDED
• Door closer body
• Arm assembly
• Fixing screws
• Installation instructions
DOOR CLOSER QUICK SELECTION GUIDE
Door closers are selected according to door width and door weight.
| Door Width | Typical Door Weight | Recommended Door Closer |
|---|---|---|
| Up to 850mm | Up to 60kg | QS680 |
| Up to 950mm | Up to 80kg | QS690V |
| Up to 1100mm | Up to 100kg | QS750 |
| Up to 1100mm | Medium traffic commercial doors | QS760ET |
| Up to 1100mm | Heavy duty commercial doors | QS880 / QS895 |
| Concealed installation | Architectural doors | QS970 |
Important:
Door weight can vary depending on the door material (timber, aluminium, steel, or glass).
NEED HELP CHOOSING A DOOR CLOSER?
Not sure which door closer you need?
Send us your door width, door weight, or a photo of the door, and we will recommend the correct model.
If you are unsure which door closer is suitable for your door, please contact The Stickman Store and we will gladly assist.
