ABOUT THIS DOOR CLOSER

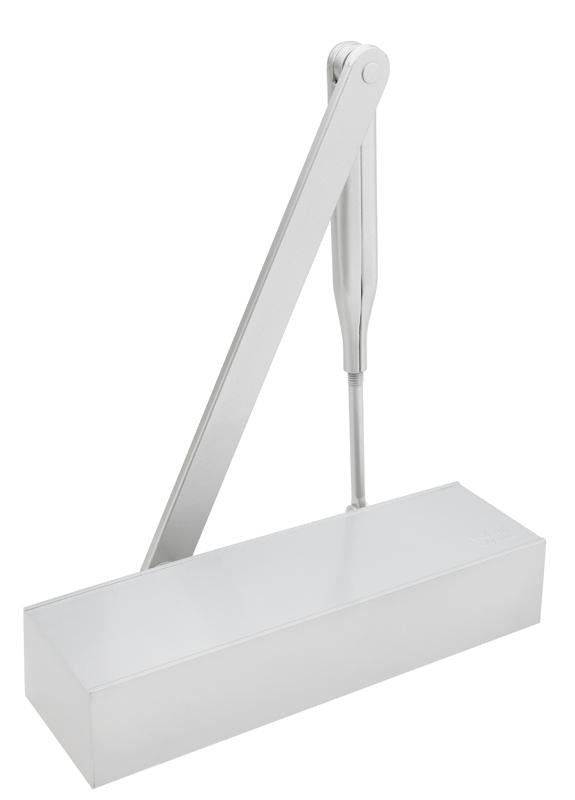

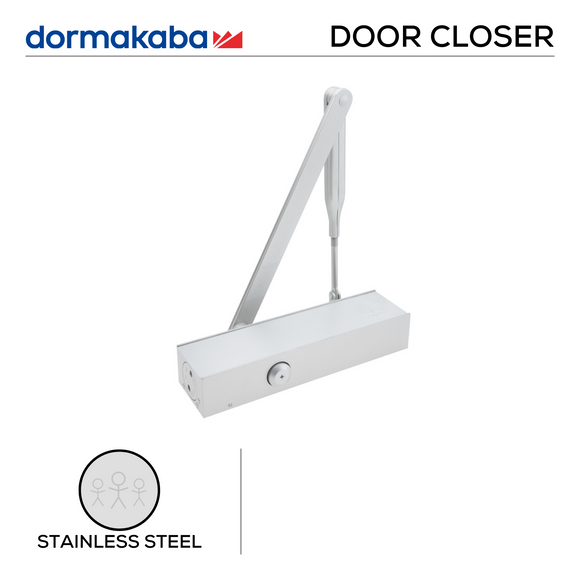

The Dorma TS73V Door Closer – Non Hold Open (NHO) is a high-quality hydraulic surface mounted door closer designed for smooth, reliable, and adjustable performance in residential and commercial environments.
Door closers improve safety, security, and energy efficiency by ensuring doors return to the closed position.
The TS73V is a premium door closer offering improved control and flexibility compared to standard models.
KEY FEATURES
-
Brand: Dormakaba
-
Model: TS73V
-
Function: Non Hold Open (NHO)
-
Door Closer Type: Surface Mounted Door Closer
-
Mechanism: Rack & Pinion
-
EN Rating: EN2–4 (Adjustable)
-
Maximum Door Width: 1100mm
-
Maximum Door Weight: ±80–100kg
-
Arm Type: Standard Arm
-
Finish: Silver
-
Fire Rated: No (refer TS68 for fire-rated option)
-
Adjustable Power: Yes
HOLD OPEN OR NON HOLD OPEN
This product is the Non Hold Open (NHO) version.
Hold Open (HO)
Allows the door to remain open when pushed fully open.
Ideal for offices and high-traffic environments.
Non Hold Open (NHO)
The door always closes automatically.
Recommended for security and controlled access.
ARM TYPES EXPLAINED
Standard Arm
Mounted perpendicular to the door.
Provides strong and controlled closing force.
Parallel Arm (PA)
Mounted parallel to the frame:
• More secure
• Ideal for commercial applications
• Slightly reduced closing force
DELAYED ACTION (OPTIONAL)
Delayed Action (DC) slows the closing cycle before the final closing phase.
Ideal for:
• Offices
• Commercial environments
• Accessibility compliance
SUITABLE FOR
• Residential doors
• Office buildings
• Commercial environments
• Medium to high traffic areas
Door Materials
• Timber doors
• Aluminium doors
• Steel doors
WHERE THIS PRODUCT FITS
Entry Level → TS Nano
Standard → TS77
Mid Range → TS68
Commercial → TS71
Premium → TS73V (Adjustable Performance)
Premium Cam Action → TS93
Heavy Duty → TS83
Architectural → ITS96
HOW TO CHOOSE THE CORRECT DOOR CLOSER
Door closers are selected according to door width and weight.
Typical guideline:
-
EN2–3 → light internal doors
-
EN3–4 → standard commercial doors
-
EN5+ → heavy duty doors
The TS73V adjustable EN2–4 allows for flexibility across different door sizes and applications.
INSTALLATION INFORMATION
Surface door closers can usually be installed in three ways:
• Door leaf installation
• Frame (transom) installation
• Parallel arm installation
The correct installation depends on the door configuration.
WHAT’S INCLUDED
• Door closer body
• Arm assembly
• Fixing screws
• Installation instructions
DOOR CLOSER QUICK SELECTION GUIDE
| Door Width | Typical Door Weight | Recommended Door Closer |
|---|---|---|
| Up to 850mm | Up to 60kg | TS Nano |
| Up to 950mm | Up to 80kg | TS77 |
| Up to 1100mm | Up to 100kg | TS68 |
| Up to 1100mm | Medium traffic commercial | TS71 |
| Up to 1400mm | Heavy duty doors | TS83 |
| Concealed installation | Architectural doors | ITS96 |
