ABOUT THIS FLOOR SPRING

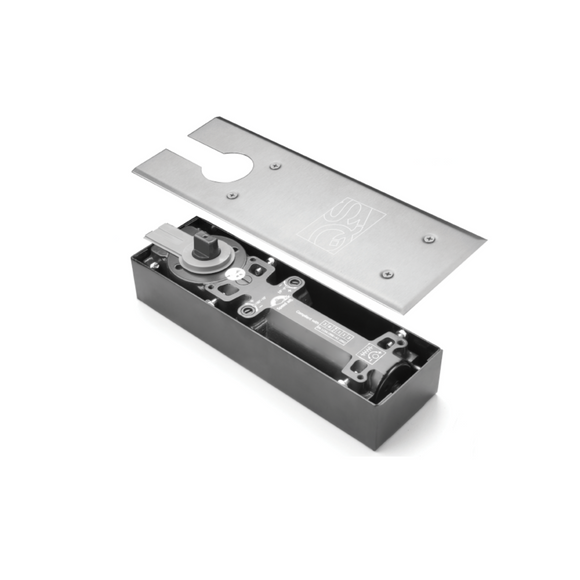

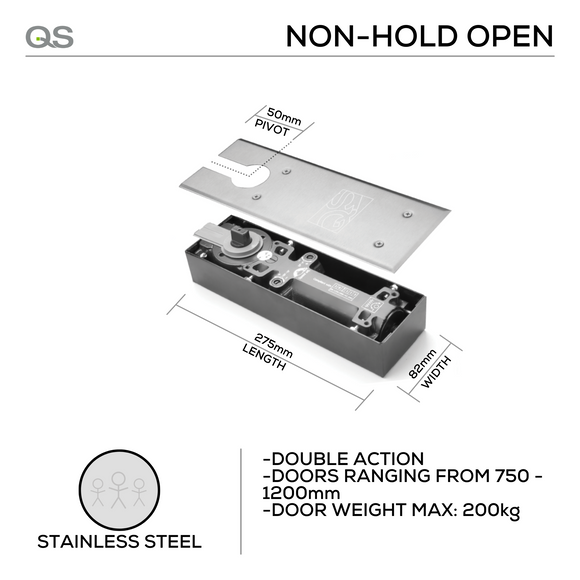

The QS899V Floor Spring – Non Hold Open (NHO) is a heavy duty hydraulic floor-mounted door closer that controls the opening and closing of pivot and entrance doors.
Floor springs are installed inside the floor beneath the door, giving a concealed, durable closing mechanism and smooth door operation. The QS899V has adjustable spring strength, so it suits a wide range of door sizes and weights.
KEY FEATURES
Brand: QS Doorware
Model: QS899V
Function: Non Hold Open (NHO) – the door always returns to closed
Operation: Double Action (opens both directions)
Adjustable Spring Strength: Yes
Maximum Door Width: 1100mm
Maximum Door Weight: 150kg
Cover Plate / Finish: Stainless Steel
Standard: EN1154
HOLD OPEN OR NON HOLD OPEN?
Non Hold Open (this product): the door always closes by itself – ideal for offices, security doors and controlled access.
Hold Open: the door can stay open at about 90° – ideal for shops and public entrances. See the Hold Open version
SUITABLE FOR
• Pivot entrance doors
• Glass, aluminium and timber doors
• Shopfronts, offices and commercial buildings
⚠️ A FLOOR SPRING IS ONE PART OF THE SYSTEM
The floor spring controls the door. The pivot set carries the weight of the door. For doors above 100kg, use a heavy duty pivot set.
To complete your door you may also need:
• Pivot Sets, Pivot Locks & Lock Sets
• Cylinders
• Pull Handles
Professional installation is recommended for correct alignment and performance.
WHAT'S INCLUDED
• Floor spring body
• Stainless steel cover plate
• Fixing components
• Installation instructions
NEED HELP CHOOSING?
Send us:
1. A photo of the complete door
2. Door width
3. Door height
4. Timber, aluminium or glass
5. New installation or replacement
📧 hello@thestickman.co.za
📞 Call / WhatsApp: 082 508 7708
Full specifications: QS899V NHO, Floor Spring – Heavy Duty – Up to 150kg – Non Hold Open
