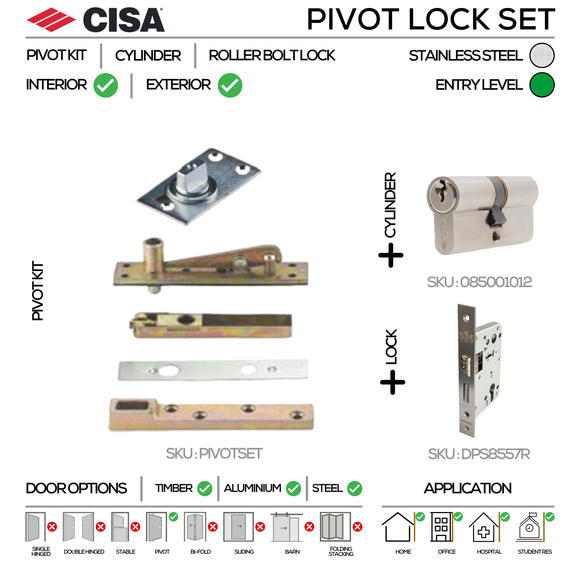

ABOUT THIS PIVOT LOCK SET
The CISA DPS85 Pivot Lock Set is a reliable locking solution designed for standard pivot doors.
This lock set features a rollerbolt and deadbolt mechanism, providing smooth closing operation with secure locking functionality.
CISA is known for its strong focus on security, making this lock set a great choice where controlled access and key management are important.
Pivot lock sets provide the locking function only and must be used together with a floor spring and pivot hardware to create a complete pivot door system.
The DPS85 is designed for doors up to 100kg, making it ideal for residential and light commercial applications.
⚠️ IMPORTANT – THIS IS NOT A COMPLETE PIVOT DOOR SYSTEM
This product is a lock set only.
To operate correctly, a pivot door requires:
• Floor spring (controls door movement)
• Pivot set (carries door weight)
• Lock set (this product)
• Cylinder (controls key access)
• Handles with escutcheons (user operation)
👉 Without these components, the door will not function correctly.
🔐 CYLINDER & SECURITY (VERY IMPORTANT)
This lock uses a Euro profile cylinder, which determines the security level of the door.
Available options include:
| Security Level | Cylinder Type | Use Case |
|---|---|---|
| Basic | C1000 | Standard residential |
| Standard | C2000 | Offices / light commercial |
| High Security | C3000 | High security / master key systems |
👉 This allows you to upgrade security without changing the lock.
KEY FEATURES
Brand: CISA
Model: DPS85
Function: Pivot Lock Set
Lock Type: Rollerbolt & Deadbolt
Door Type: Pivot Door
Maximum Door Weight: 100kg
Application: Standard Duty
Material: Stainless Steel
Finish: Stainless Steel (SS)
COMPATIBLE OPTIONS
This lock set works with:
• Floor springs (QS860 / equivalent)
• Pivot sets (CISA or QS5507)
• Euro profile cylinders (C1000 / C2000 / C3000)
• Pull handles with escutcheons
⚠️ PIVOT SET REQUIREMENT
This lock does NOT support door weight.
Recommended:
• Standard doors → Pivot Set up to 100kg
👉 Using the wrong pivot will cause door sagging.
⚠️ FLOOR SPRING REQUIREMENT
A floor spring is REQUIRED.
Recommended:
• QS860 → standard doors
• QS899V → larger/heavier doors
👉 Without a floor spring, the door will not operate.
HOW TO IDENTIFY A STANDARD DOOR
| Door Type | Size | Weight | Use |
|---|---|---|---|
| Standard | 2100 × 900 | 40–70kg | DPS85 |
| Medium | 2400 × 1000 | 70–100kg | DPS85 |
| Large | 2500mm+ | 100kg+ | Upgrade required |
WHAT TO LOOK OUT FOR
Upgrade if:
• Door exceeds 1000mm width
• Door exceeds 2400mm height
• Solid timber door
• High traffic entrance
👉 Move to heavy duty system
BRAND COMPARISON – QS vs CISA vs DORMA
| Brand | Strength | Best For |
|---|---|---|
| QS | Value + versatility | General pivot doors |
| CISA | Security + cylinders | Controlled access |
| Dorma | Premium | Architectural |
COMPLETE PIVOT DOOR SYSTEM
| Component | Example |
|---|---|
| Floor Spring | QS860 |
| Pivot Set | QS5507 / CISA Pivot |
| Lock Set | DPS85 (this product) |
| Cylinder | CISA C1000 / C2000 / C3000 |
| Handles | Pull Handles |
WHAT'S INCLUDED
• Lock body
• Rollerbolt & deadbolt
• Fixings
⚠️ Cylinder may vary
⚠️ Pivot + floor spring NOT included
🔗 RELATED PRODUCTS
👉 Floor Springs
https://thestickman.co.za/collections/floorsprings
👉 Pivot Sets
https://thestickman.co.za/collections/pivot-set-and-accessories
👉 Pull Handles
https://thestickman.co.za/collections/pull-handles
NEED HELP CHOOSING?
Send us:
• Door size
• Door weight
• Photo
We’ll assist.
