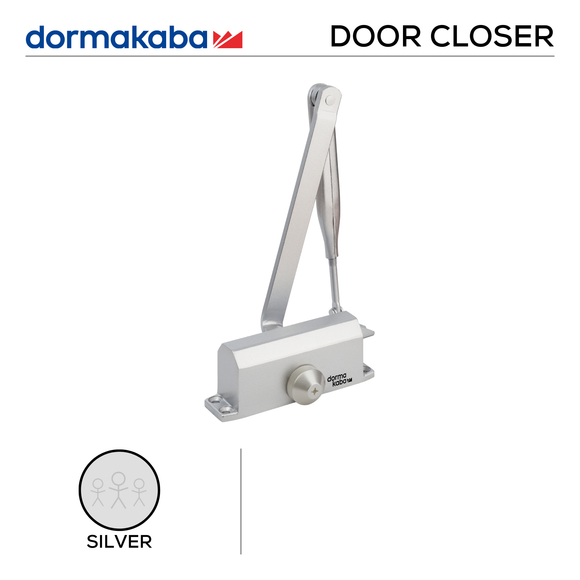

TS Nano Door Closer – Entry Level – Up to 40kg – Standard Arm

DORMAKABA SKU: TS Nano

R 459.00


ABOUT THIS DOOR CLOSER

The Dorma TS Nano Door Closer – Non Hold Open (NHO) is a compact hydraulic surface mounted door closer designed for light-duty internal doors.

Door closers improve safety, security, and energy efficiency by ensuring doors return to the closed position.

The TS Nano is an entry level door closer and is ideal for residential and low-traffic applications.

KEY FEATURES

  • Brand: Dormakaba

  • Model: TS Nano

  • Function: Non Hold Open (NHO)

  • Door Closer Type: Surface Mounted Door Closer

  • Mechanism: Rack & Pinion

  • EN Rating: EN2

  • Maximum Door Width: 850mm

  • Maximum Door Weight: ±40–60kg

  • Arm Type: Standard Arm

  • Finish: Silver

  • Fire Rated: No

  • Adjustable Power: No (Fixed EN2)

HOLD OPEN OR NON HOLD OPEN

This product is the Non Hold Open (NHO) version.

Hold Open (HO)
Allows the door to remain open when pushed fully open.
Typically used in offices and convenience areas.

Non Hold Open (NHO)
The door always closes automatically.
Recommended for controlled access and general use.

ARM TYPES EXPLAINED

Standard Arm
Mounted perpendicular to the door.
Provides reliable closing force for light-duty doors.

Parallel Arm (PA) (if applicable)
Mounted parallel to the frame:
• More secure
• Cleaner appearance
• Slightly reduced closing force

SUITABLE FOR

• Residential internal doors
• Light office use
• Low traffic areas

Door Materials

• Timber doors
• Aluminium doors

WHERE THIS PRODUCT FITS

Entry Level → TS Nano (Light Duty Internal Doors)
Standard → TS77
Mid Range → TS68
Commercial → TS71
Premium → TS73V
Premium Cam Action → TS93
Heavy Duty → TS83
Architectural → ITS96

HOW TO CHOOSE THE CORRECT DOOR CLOSER

Door closers are selected according to door width and weight.

Typical guideline:

  • EN2 → light internal doors

  • EN3–4 → standard office doors

  • EN5+ → heavy commercial doors

The TS Nano (EN2) is suitable for lightweight internal doors only.

INSTALLATION INFORMATION

Surface door closers can usually be installed in:

• Door leaf installation
• Frame (transom) installation

The correct installation depends on the door configuration.

WHAT’S INCLUDED

• Door closer body
• Arm assembly
• Fixing screws
• Installation instructions

DOOR CLOSER QUICK SELECTION GUIDE

Door Width Typical Door Weight Recommended Door Closer
Up to 850mm Up to 60kg TS Nano
Up to 950mm Up to 80kg TS77
Up to 1100mm Up to 100kg TS68
Up to 1100mm Medium traffic commercial TS71
Up to 1250mm Premium smooth operation TS93
Up to 1400mm Heavy duty doors TS83
Concealed installation Architectural doors ITS96

NEED HELP CHOOSING A DOOR CLOSER?

Not sure which door closer you need?

Send us your door width, door weight, or a photo of the door, and we will recommend the correct model.

If you are unsure which door closer is suitable for your door, please contact The Stickman Store and we will gladly assist.
