ABOUT THIS PIVOT LOCK SET

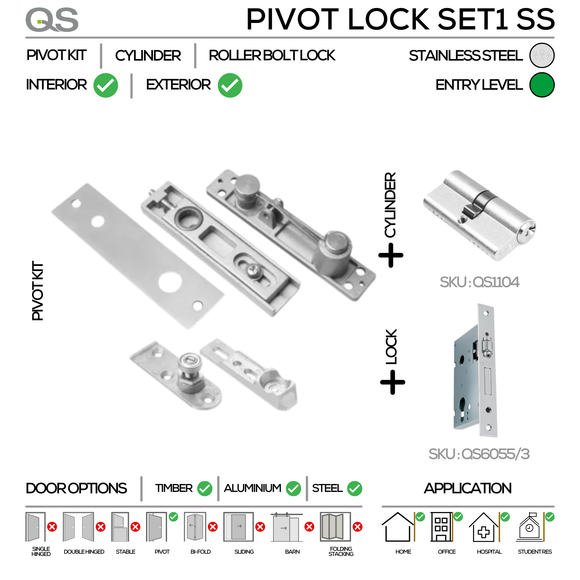

The QS6055/3 Pivot Lock Set is a heavy pattern locking solution designed for pivot doors requiring a stronger and more robust lock body than narrow style locks.
This lock set features a rollerbolt and deadbolt mechanism, making it suitable for both aluminium and timber pivot doors.
The QS6055/3 is available in different weight ratings depending on the door size:
• Standard Duty – for doors up to 100kg
• Heavy Duty – for doors up to 250kg
Pivot lock sets provide the locking function only and must be used together with a floor spring and pivot hardware to create a complete pivot door system.
⚠️ IMPORTANT – THIS IS NOT A COMPLETE PIVOT DOOR SYSTEM
This product is a lock set only.
To operate correctly, a pivot door requires:
• Floor spring
• Pivot set
• Lock set (this product)
• Cylinder
• Handles with escutcheons
👉 Without these components, the door will not function correctly.
KEY FEATURES
Brand: QS Doorware
Model: QS6055/3
Function: Pivot Lock Set
Lock Type: Heavy Pattern Rollerbolt & Deadbolt
Door Type: Pivot Door
Application: Standard & Heavy Duty
Material: Stainless Steel
Finish: Stainless Steel (SS)
⚠️ UNDERSTANDING THE DIFFERENCE (VERY IMPORTANT)
| Version | Door Weight | When to Use |
|---|---|---|
| 100kg Version | Up to 100kg | Standard aluminium or lighter doors |
| 250kg Version | Up to 250kg | Large timber or heavy pivot doors |
👉 If unsure — always move UP to the heavier option
⚠️ PIVOT SET REQUIREMENT
This lock does NOT carry the door weight.
Recommended:
| Door Type | Pivot Set |
|---|---|
| Up to 100kg | QS5507 |
| Up to 250kg | QS5504 |
⚠️ FLOOR SPRING REQUIREMENT
This lock set does NOT include a floor spring.
Recommended:
| Door Type | Floor Spring |
|---|---|
| Standard doors | QS860 |
| Heavy doors | QS899V |
👉 The floor spring is what makes the door open and close.
HOW TO IDENTIFY A HEAVY DOOR
| Door Type | Size (mm) | Weight | What to Use |
|---|---|---|---|
| Standard | 2100 × 900 | 40–70kg | 100kg version |
| Medium | 2400 × 1000 | 70–100kg | 100kg version |
| Large | 2600 × 1100 | 100–180kg | 250kg version |
| Oversized | 2800mm+ | 180kg+ | Heavy duty system |
WHAT TO LOOK OUT FOR
Upgrade to heavy duty if:
• Door is wider than 1000mm
• Door is taller than 2400mm
• Door is solid timber
• Door feels heavy when opening
BRAND COMPARISON
| Brand | Strength | Best Use |
|---|---|---|
| QS | Strong + affordable | Most pivot doors |
| CISA | Security | Key systems |
| Dorma | Premium | High-end |
COMPLETE PIVOT DOOR SYSTEM
| Component | Example |
|---|---|
| Floor Spring | QS899V |
| Pivot Set | QS5504 |
| Lock Set | QS6055/3 |
| Cylinder | Euro Cylinder |
| Handles | Pull Handles |
WHAT'S INCLUDED
• Lock body
• Rollerbolt + deadbolt
• Fixings
⚠️ Cylinder may vary
⚠️ Floor spring NOT included
⚠️ Pivot set NOT included
