ABOUT THIS DOOR CLOSER

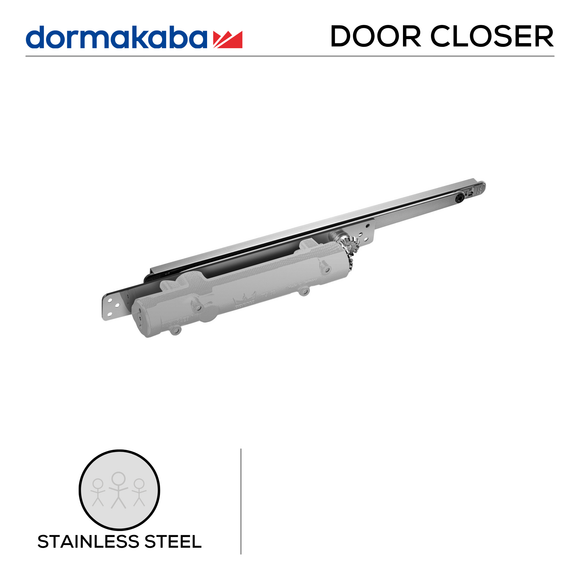

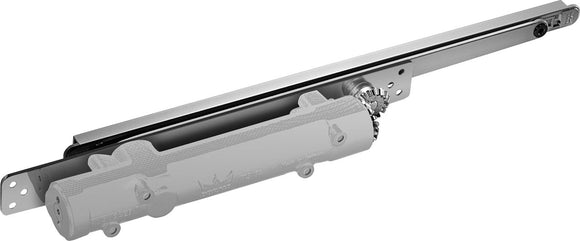

The ITS96 Door Closer – EN2–4 – Non Hold Open (NHO) is a concealed cam-action door closer designed to be installed inside the door and frame for a completely hidden installation.
Unlike surface mounted door closers, concealed closers are not visible when the door is closed, making them ideal for architectural and high-end commercial applications.
This product is supplied as a complete set, ready for installation.
KEY FEATURES
Brand: Dormakaba
Model: ITS96
Function: Non Hold Open (NHO)
Door Closer Type: Concealed Door Closer
Mechanism: Cam Action
EN Rating: EN2–4 (Adjustable)
Maximum Door Width: 1100mm
Maximum Door Weight: 100kg
Installation: Concealed in door and frame
Finish: Concealed (No visible body)
Fire Rated: Yes
IMPORTANT NOTE
Please confirm whether your door is timber or aluminium before purchasing to ensure the correct configuration is supplied.
WHAT’S INCLUDED
• Concealed door closer body
• Slide channel / arm system (G96N)
• Fixing components
• Extended spindle
• Installation instructions
👉 This is a complete concealed door closer system
HOLD OPEN OR NON HOLD OPEN
This product is the Non Hold Open (NHO) version.
Hold Open (HO)
Allows the door to remain open at a fixed position.
Common in retail and public access environments.
Non Hold Open (NHO)
The door always closes automatically.
Typically required for fire doors and controlled access doors.
WHAT IS A CONCEALED DOOR CLOSER?
A concealed door closer is installed inside the door leaf and frame, making it invisible when the door is closed.
Benefits:
• Clean architectural appearance
• No visible hardware
• Ideal for high-end commercial installations
• Suitable for aluminium and timber doors
SUITABLE FOR
• Aluminium doors
• Timber doors
• Office interiors
• Commercial buildings
• Architectural doors
• Fire-rated doors
HOW TO CHOOSE THE CORRECT DOOR CLOSER
Door closers are selected according to door width and door weight.
TYPICAL EN SIZE GUIDE
| EN Size | Door Width | Typical Door Weight | Application |
|---|---|---|---|
| EN2–3 | Up to 850mm | Up to 60kg | Light internal doors |
| EN3–4 | Up to 950–1100mm | 60–80kg | Standard office doors |
| EN5–6 | Up to 1250–1400mm | 80–120kg | Heavy commercial doors |
| EN7 | Up to 1400mm+ | 120–160kg | Extra heavy doors |
WHAT THIS MEANS
• Light doors → ±40–60kg
• Standard doors → ±60–80kg
• Heavy doors → ±80–120kg
• Extra heavy doors → 120kg+
WHERE THE ITS96 FITS
The ITS96 (EN2–4) is suitable for:
• Doors up to ±100kg
• Doors up to 1100mm wide
• Architectural / concealed applications
DOOR CLOSER QUICK SELECTION GUIDE
| Door Type | Application | Recommended Door Closer |
|---|---|---|
| Standard doors | Residential / office | TS68 / TS71 |
| Commercial doors | Medium duty | TS73V |
| Heavy duty doors | High traffic | TS83 |
| Concealed / architectural doors | Hidden installation | ITS96 |
INSTALLATION INFORMATION
The ITS96 is installed:
• Inside the door leaf
• Inside the frame
Requires:
• Routing of door and frame
• Slide channel system
• Top pivot system
Professional installation is recommended.
NEED HELP CHOOSING A DOOR CLOSER?
Not sure which door closer you need?
Send us your door width, door weight, or a photo of the door, and we will recommend the correct model.
If you are unsure which door closer is suitable for your door, please contact The Stickman Store and we will gladly assist.
Email: hello@thestickman.co.za
Call / WhatsApp: 082 508 7708
