ABOUT THIS PIVOT LOCK SET
The QS6055/3PVD Pivot Lock Set is a heavy pattern locking solution designed for pivot doors where both strength and appearance are important.
This model features a larger lock body than narrow style locks, making it suitable for timber doors and wider aluminium doors.
The brass (PVD) finish provides a warmer, more decorative appearance, making it ideal for premium residential and architectural applications.
Pivot lock sets provide the locking function only and must be used together with a floor spring and pivot hardware to create a complete pivot door system.
The QS6055/3PVD is designed for doors up to 100kg.
⚠️ IMPORTANT – THIS IS NOT A COMPLETE PIVOT DOOR SYSTEM
This product is a lock set only.
To operate correctly, a pivot door requires:
• Floor spring (controls door movement)
• Pivot set (carries door weight)
• Lock set (this product)
• Cylinder (for key operation)
• Handles with escutcheons
👉 Without these components, the door will not function correctly.
KEY FEATURES
Brand: QS Doorware
Model: QS6055/3PVD
Function: Pivot Lock Set
Lock Type: Rollerbolt & Deadbolt
Door Type: Pivot Door
Maximum Door Weight: 100kg
Application: Standard Duty
Material: Stainless Steel with PVD Coating
Finish: Brass (PVD)
COMPATIBLE OPTIONS
This lock set can be used with:
• Floor springs (QS860 / QS899V depending on door size)
• Pivot sets (QS5507 recommended)
• Euro profile cylinders
• Pull handles and escutcheons in matching finishes
⚠️ PIVOT SET REQUIREMENT (VERY IMPORTANT)
This lock set does NOT carry door weight.
Recommended:
• Standard doors → QS5507 Pivot Set (up to ±100kg)
👉 Incorrect pivot selection will cause door sagging.
⚠️ FLOOR SPRING REQUIREMENT (CRITICAL)
A floor spring is REQUIRED.
Recommended:
• Standard doors → QS860
• Larger doors → QS899V
👉 Without a floor spring, the door will not operate.
HOW TO IDENTIFY DOOR SIZE
| Door Type | Size (mm) | Weight | Recommendation |
|---|---|---|---|
| Standard | 2100 × 900 | 40–70kg | QS6055/3PVD |
| Medium | 2400 × 1000 | 70–100kg | QS6055/3PVD |
| Large | 2500mm+ | 100kg+ | Upgrade required |
WHAT TO LOOK OUT FOR
Upgrade to heavy duty if:
• Door exceeds 1000mm width
• Door exceeds 2400mm height
• Solid timber construction
• High traffic usage
👉 Move to QS6055 heavy duty or QS5504 system
🎨 FINISH SELECTION (IMPORTANT)
This product is finished in Brass (PVD).
Best suited for:
• Premium residential entrances
• Decorative doors
• Warm-toned architectural finishes
👉 Ensure handles and escutcheons match the same finish for a consistent look.
BRAND COMPARISON – QS vs CISA vs DORMA
| Brand | Position | Best Use |
|---|---|---|
| QS | Value + versatile | Most pivot doors |
| CISA | Security focused | Key systems |
| Dorma | Premium | Architectural |

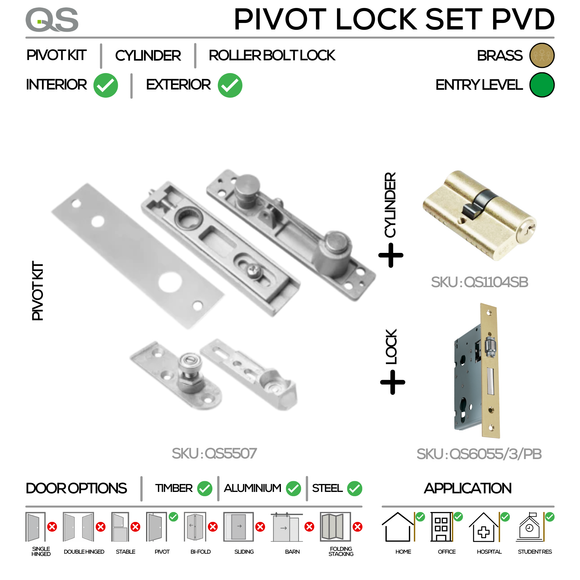

COMPLETE PIVOT DOOR SYSTEM (RECOMMENDED)
| Component | Example |
|---|---|
| Floor Spring | QS860 / QS899V |
| Pivot Set | QS5507 |
| Lock Set | QS6055/3PVD |
| Cylinder | Euro Cylinder |
| Handles | Brass Pull Handles with Escutcheons |
WHAT'S INCLUDED
• Lock body
• Rollerbolt & deadbolt
• Fixings
⚠️ Cylinder may vary
⚠️ Pivot set and floor spring NOT included
🔗 RELATED PRODUCTS
👉 Floor Springs
https://thestickman.co.za/collections/floorsprings
👉 Pivot Sets
https://thestickman.co.za/collections/pivot-set-and-accessories
👉 Pull Handles
https://thestickman.co.za/collections/pull-handles
NEED HELP CHOOSING?
Send us:
• Door size
• Door weight
• Photo
We will assist.
