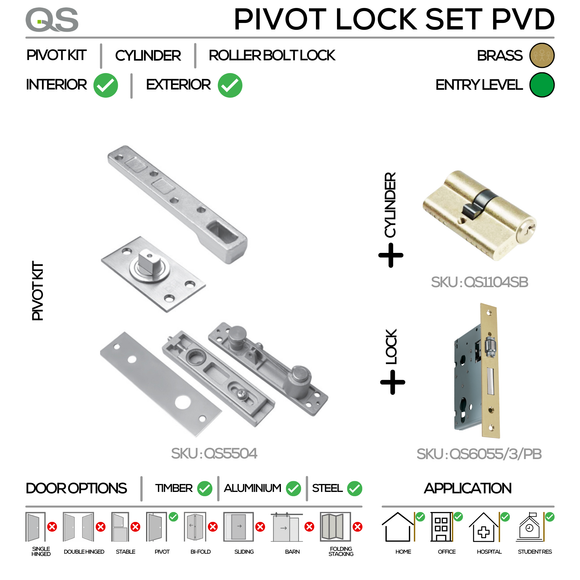

ABOUT THIS PIVOT LOCK SET
The QS6055/3PVD Heavy Duty Pivot Lock Set is a robust locking solution designed for large and heavy pivot doors where both strength and appearance are important.
This model features a heavy pattern lock body, making it suitable for solid timber doors, oversized aluminium doors, and high-traffic entrance applications.
The brass (PVD) finish provides a premium decorative appearance, making it ideal for high-end residential and architectural installations.
Pivot lock sets provide the locking function only and must be used together with a floor spring and pivot hardware to create a complete pivot door system.
The QS6055/3PVD is designed for doors up to 250kg.
⚠️ IMPORTANT – THIS IS NOT A COMPLETE PIVOT DOOR SYSTEM
This product is a lock set only.
To operate correctly, a pivot door requires:
• Floor spring (controls door movement)
• Pivot set (carries door weight)
• Lock set (this product)
• Cylinder (for key operation)
• Handles with escutcheons
👉 Without these components, the door will not function correctly.
KEY FEATURES
Brand: QS Doorware
Model: QS6055/3PVD
Function: Pivot Lock Set
Lock Type: Rollerbolt & Deadbolt
Door Type: Pivot Door
Maximum Door Weight: 250kg
Application: Heavy Duty
Material: Stainless Steel with PVD Coating
Finish: Brass (PVD)
COMPATIBLE OPTIONS
This lock set can be used with:
• Floor springs (QS899V recommended for heavy doors)
• Heavy duty pivot sets (QS5504 recommended)
• Euro profile cylinders
• Brass pull handles with escutcheons
⚠️ PIVOT SET REQUIREMENT (VERY IMPORTANT)
This lock set does NOT carry door weight.
Recommended:
• Heavy doors → QS5504 Pivot Set (up to ±250kg)
👉 Using a smaller pivot set will result in door failure.
⚠️ FLOOR SPRING REQUIREMENT (CRITICAL)
A floor spring is REQUIRED.
Recommended:
• Heavy doors → QS899V Floor Spring
👉 Without a floor spring, the door will not operate.
HOW TO IDENTIFY A HEAVY DOOR
| Door Type | Size (mm) | Weight | Recommendation |
|---|---|---|---|
| Standard | 2100 × 900 | 40–70kg | Not suitable |
| Medium | 2400 × 1000 | 70–120kg | Borderline |
| Large | 2600 × 1200 | 120–180kg | Suitable |
| Oversized | 2800mm+ | 180kg+ | Ideal |
WHAT TO LOOK OUT FOR
This lock is recommended if:
• Door width exceeds 1000mm
• Door height exceeds 2400mm
• Door is solid timber
• Door is high traffic
• Door is feature entrance
👉 This is a heavy duty application
🎨 FINISH SELECTION (IMPORTANT)
This product is finished in Brass (PVD).
Best suited for:
• Luxury residential entrances
• Architectural pivot doors
• Premium developments
👉 Match with brass handles and escutcheons for a consistent look.
BRAND COMPARISON – QS vs CISA vs DORMA
| Brand | Position | Best Use |
|---|---|---|
| QS | Value + heavy duty | Large pivot doors |
| CISA | Security focused | Key systems |
| Dorma | Premium | High-end projects |
COMPLETE PIVOT DOOR SYSTEM (RECOMMENDED)
| Component | Example |
|---|---|
| Floor Spring | QS899V |
| Pivot Set | QS5504 |
| Lock Set | QS6055/3PVD |
| Cylinder | Euro Cylinder |
| Handles | Brass Pull Handles |
WHAT'S INCLUDED
• Lock body
• Rollerbolt & deadbolt
• Fixing components
⚠️ Cylinder may vary
⚠️ Pivot set and floor spring NOT included
🔗 RELATED PRODUCTS
👉 Floor Springs
https://thestickman.co.za/collections/floorsprings
👉 Pivot Sets
https://thestickman.co.za/collections/pivot-set-and-accessories
👉 Pull Handles
https://thestickman.co.za/collections/pull-handles
NEED HELP CHOOSING?
Send us:
• Door size
• Door weight
• Photo
We’ll assist.
