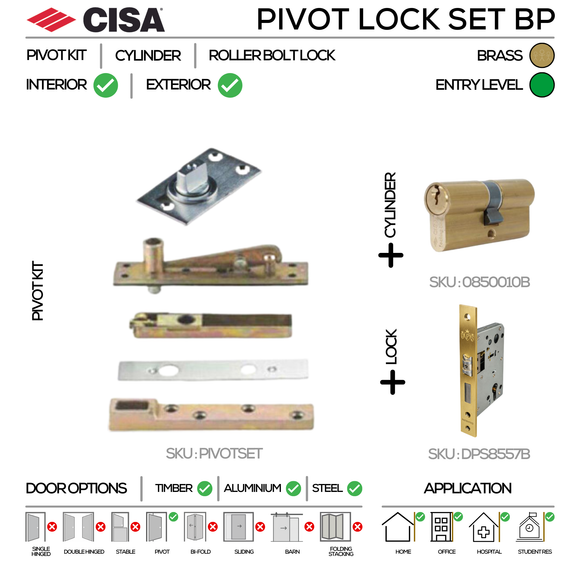

ABOUT THIS PIVOT LOCK SET
The CISA DPS85BP Pivot Lock Set is a reliable locking solution designed for standard pivot doors where both security and appearance are important.
This model features a rollerbolt and deadbolt mechanism, providing smooth door closing with secure locking functionality.
The brass plated finish offers a warmer, more decorative look, making it suitable for residential and light commercial applications where aesthetics are important.
CISA is known for its focus on security, making this lock set an excellent choice where controlled access and key management are required.
Pivot lock sets provide the locking function only and must be used together with a floor spring and pivot hardware to create a complete pivot door system.
The DPS85BP is designed for doors up to 100kg.
⚠️ IMPORTANT – THIS IS NOT A COMPLETE PIVOT DOOR SYSTEM
This product is a lock set only.
To operate correctly, a pivot door requires:
• Floor spring (controls door movement)
• Pivot set (carries door weight)
• Lock set (this product)
• Cylinder (controls key access)
• Handles with escutcheons
👉 Without these components, the door will not function correctly.
🔐 CYLINDER & SECURITY (VERY IMPORTANT)
This lock uses a Euro profile cylinder, which determines the security level.
Available options:
| Security Level | Cylinder | Use Case |
|---|---|---|
| Basic | C1000 | Residential |
| Standard | C2000 | Offices |
| High Security | C3000 | Commercial / secure sites |
👉 This allows security upgrades without changing the lock.
KEY FEATURES
Brand: CISA
Model: DPS85BP
Function: Pivot Lock Set
Lock Type: Rollerbolt & Deadbolt
Door Type: Pivot Door
Maximum Door Weight: 100kg
Application: Standard Duty
Material: Steel
Finish: Brass Plated
COMPATIBLE OPTIONS
This lock set works with:
• Floor springs (QS860 / QS899V depending on door size)
• Pivot sets (CISA or QS5507)
• Euro profile cylinders (C1000 / C2000 / C3000)
• Brass pull handles with escutcheons
⚠️ PIVOT SET REQUIREMENT (VERY IMPORTANT)
This lock does NOT carry door weight.
Recommended:
• Standard doors → Pivot Set up to 100kg
👉 Incorrect pivot selection leads to door sagging.
⚠️ FLOOR SPRING REQUIREMENT (CRITICAL)
A floor spring is REQUIRED.
Recommended:
• QS860 → standard doors
• QS899V → larger doors
👉 Without a floor spring, the door will not operate.
HOW TO IDENTIFY DOOR SIZE
| Door Type | Size (mm) | Weight | Recommendation |
|---|---|---|---|
| Standard | 2100 × 900 | 40–70kg | DPS85BP |
| Medium | 2400 × 1000 | 70–100kg | DPS85BP |
| Large | 2500mm+ | 100kg+ | Upgrade required |
WHAT TO LOOK OUT FOR
Upgrade if:
• Door exceeds 1000mm width
• Door exceeds 2400mm height
• Solid timber door
• High traffic use
👉 Move to heavy duty system
🎨 FINISH SELECTION (IMPORTANT)
This product features a Brass Plated finish.
Best suited for:
• Decorative entrance doors
• Residential applications
• Warm interior finishes
👉 Ensure handles and escutcheons match the same finish.
BRAND COMPARISON – QS vs CISA vs DORMA
| Brand | Strength | Best For |
|---|---|---|
| QS | Value + versatility | General use |
| CISA | Security + cylinders | Controlled access |
| Dorma | Premium | Architectural |
COMPLETE PIVOT DOOR SYSTEM
| Component | Example |
|---|---|
| Floor Spring | QS860 |
| Pivot Set | QS5507 / CISA Pivot |
| Lock Set | DPS85BP |
| Cylinder | CISA C1000 / C2000 / C3000 |
| Handles | Brass Pull Handles |
WHAT'S INCLUDED
• Lock body
• Rollerbolt & deadbolt
• Fixings
⚠️ Cylinder may vary
⚠️ Pivot + floor spring NOT included
🔗 RELATED PRODUCTS
👉 Floor Springs
https://thestickman.co.za/collections/floorsprings
👉 Pivot Sets
https://thestickman.co.za/collections/pivot-set-and-accessories
👉 Pull Handles
https://thestickman.co.za/collections/pull-handles
NEED HELP CHOOSING?
Send us:
• Door size
• Door weight
• Photo
We’ll assist.
